24V DC Power Supply UVSS System Color Area Scanning Camera Under Vehicle Scanning
| Place of Origin | Shenzhen ,China |
|---|---|
| Brand Name | Securina |
| Certification | FCC/CE |
| Model Number | SA3300 |
| Minimum Order Quantity | 1 Piece |
| Price | $ 5999-15999/Piece |
| Packaging Details | Strong Carton Box or Plywooden |
| Delivery Time | 5-8 working days |
| Payment Terms | L/C, T/T, Western Union, MoneyGram |
| Supply Ability | 500 Sets/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Under Car Inspection Scanning System | Resolution | 5000*2048 Pixels |
|---|---|---|---|
| Operation Interface | Multi-Language Support | Oem | YES |
| Power Supply | 24VDC | Vehicle Speed | 1-60km/h |
| Highlight | under vehicle scanning system,car surveillance equipment |
||
Product Description
Color Area Scanning Camera Under Vehicle Scanning System on Any Terrain Day or Night
Under Vehicle Scanning System Function
◆ Advanced linear array CCD scanning imaging system for high-resolution, high-definition, complete vehicle chassis imaging
◆ Automatic detection of vehicle speed and output of pulse signal to control camera acquisition to prevent vehicle image from moving in the direction of motion
◆ Multi-channel scene ( 1 to 4 (optional)) Real-time monitoring and simultaneous HD recording
◆ Automatic identification of license plates, associated time information for archival detection, corresponding vehicle bottom image, multi-channel surveillance image
Under Vehicle Scanning System Data Sheet
| Usage | Road Traffic Safety |
|
Viewing angles |
≥170° |
|
Scanner size |
1200mm*350mm |
|
Scanning image |
complete chassic in color or Black and white |
|
Monitor |
22inch LCD |
|
Technology |
Infrared |
|
Weight capacity |
< 30T |
|
Language |
Multiple |
|
Kind Autofocus Lens |
Kind Autofocus Lens |
| Scanning device weight | 24KG |
| Scanning device volume | 450mm× 400mm× 88mm |
| Communication interface | RS232/RS422 |
Under Vehicle Scanning System Features
1. Automatic identification of license plates, associated time information for archival detection, corresponding vehicle bottom image, multi-channel surveillance image
2. Quick retrieval and playback of associated images (zoom, partial magnification) ), can quickly compare with the stored vehicle bottom image (≤1s)
3. The standard vehicle bottom image in the database is automatically compared with the current real-time vehicle bottom image for easy comparison
Under Vehicle Scanning System Application Fields
The system is applicable to
● Security, anti-terrorism sites such as airports, governments, prisons, bank storage areas, embassies, military, ports, public security, etc.;
● Customs and borders entrance and exit inspections;
● Inspection of entrances to key areas;
● Checking of toll stations;
● Inspection and inspection of vehicles for large-scale meetings and activities;
It can effectively prevent bombs, weapons, biohazardous drugs, drugs, illegal smuggled objects, illegal immigrants, dangerous people, etc. from passing through important places. The system is available in both portable and buried versions. Special requirements are customized.

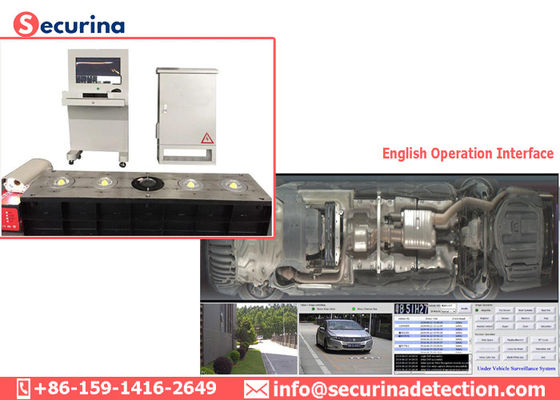

Under Vehicle Scanning System Operation Interface
