36mm Thickness Blast Containment Vessel 680kgs For Bombs Exploding FBQ-3.0
Place of Origin | Guangdong, China |
---|---|
Brand Name | Securina |
Certification | FCC-SDoC, CE |
Model Number | FBG-2.0 |
Minimum Order Quantity | 1 pc |
Price | $3, 000-$50, 000/pc |
Packaging Details | Plywooden case |
Delivery Time | 5-8 working days upon payment confirmation |
Payment Terms | L/C, T/T, Western Union, MoneyGram |
Supply Ability | 500 Pieces per Month |

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xBomb Containment Vessel Type | Mobile With Four Wheels | Exploding Inside Max Bearing | 3.0 Kgs TNT Or Equal |
---|---|---|---|
Thickness Of Blast Containment Tanksball Wall | 36mm | Threat Containment Vessel Materials | Carbon Steel |
Bomb Containment Vessel Net Weight | 680kgs | Total Containment Vessels Size | 920mm * 980mm * 880mm ( Wide*Deep*Height, When Cover Closed) |
High Light | 36mm Thickness Blast Containment Vessel,680kgs Blast Containment Vessel,Bombs Exploding Explosive Containment Vessels |
36mm Thickness Bomb Blast Containment Vessel For Bombs Exploding FBQ-3.0
Blast containment tanks for EOD teams:
Bomb containment vessel, also known as spherical blast containment tank. The principle is to use thicker iron or other metal shells to prevent the fragments and energy from the explosion from spreading. Its riot strength is above 1.5kg equivalent TNT explosive (only possibly higher). In general, TNT explosives higher than 1.5kg equivalent level are rarely found in subway stations without being detected by security. So the threat containment vessel is enough. The spherical explosive containment is a kind of sealed container.
The general purpose of the suspect parcel containment vessel is not to put the bomb in it to prevent it from exploding but to see the bomb that is about to explode, and it is impossible to expel the bomb in time, so you can only throw the bomb. Go in and let the bomb explode inside the blast containment tank as much as possible. Use the extra-thick shell of the explosion containment tank to reduce and eliminate damage. Even if the explosion suppression equipment can be exploded, its special structure will try to minimize the flying debris. And if all the bombs that can be found by people are put into bomb disposal containers, then other people will definitely be far away, and they should not cause much harm.
Explosive Storage Vessel Specifications:
Material: | Carbon steel, Thickness 36mm; |
Composed: | by tank body, tank lid, trawl, mechanical facility for operating lid, foundation, Jacking parts, Venting components, Wheels and etc; |
Operation way: | Manually open/close the cover via external devices; the month of the ball tank is vertically upward; |
Cover opened | from inside; |
Bottom base size: | 800mm * 900mm * 90mm ( Wide*Deep*Height) |
Complete device size: | 900mm * 980mm * 880mm ( Wide*Deep*Height, when cover open) |
Inner size: | 750mm * 650mm ( Wide*Deep, when cover closed) |
Inner diameter : | 750mm |
Outer diameter : | 880mm |
Mouth diameter: | 550mm |
Cover diameter : | 590mm |
Max open diameter: | 330mm |
Venting holes Diameter: | 5mm (on the body of tank) |
Venting components | is made of Seamless steel pipe with a diameter of 25mm, thickness of 2mm; one side of the steel pipe is welded with the venting holes, the other side is welded to the bottom of the tank; |
Bottom of tank | is made of 12mm thick steel, its edges are made of 3mm steel, and there are 4 wheels at the bottom; |
Net weight of the ball tank | 660kgs |

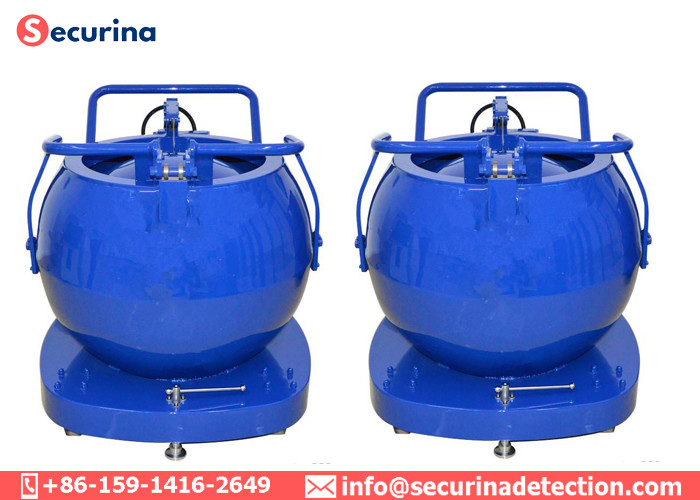

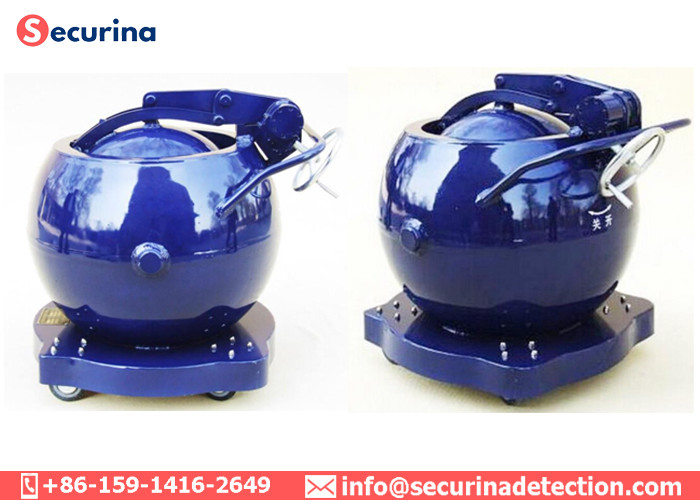

Explosion suppression equipment Picture:
