Portable Traffic UVSS System Liner Scan CCD Camera Unlimited Length Of Car Area
| Place of Origin | Shenzhen ,China |
|---|---|
| Brand Name | Securina |
| Certification | FCC/CE |
| Model Number | SA3000 |
| Minimum Order Quantity | 1 Piece |
| Price | $ 5999-15999/Piece |
| Packaging Details | Strong Carton Box or Plywooden |
| Delivery Time | 5-8 working days |
| Payment Terms | L/C, T/T, Western Union, MoneyGram |
| Supply Ability | 500 Sets/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Under Vehicle Scanning System | Technology | Liner Scan CCD Camera |
|---|---|---|---|
| Language | Multiple | Resolution | 5000*2048 Pixels |
| Vehicle Speed | 1-60km/h | Scanner Data Line | 10 Meters (customizable Length) |
| High Light | under vehicle scanning system,car surveillance equipment |
||
Product Description

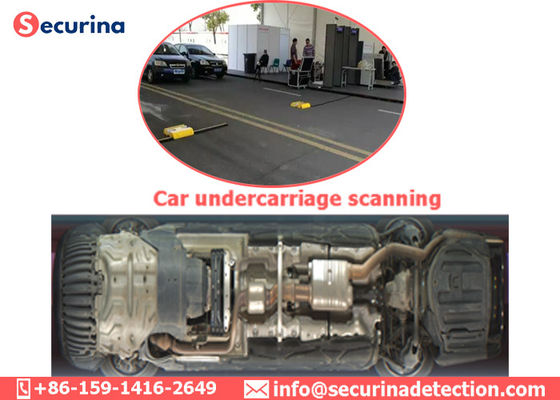

Portable Traffic Products Under Vehicle Surveillance Systems (UVSS) with Unlimited Length of Car Area
Under Vehicle Surveillance Systems (UVSS) Overview
This product is a vehicle safety inspection system independently developed by our company. It can check whether it has been illegally altered, hiding illegal articles or personnel such as drugs and bombs under the chassis and can also check the places where the human body is inconvenient to reach. In addition, this product has portable mobility to meet the needs of mobile temporary inspection. This product is also suitable for inspection of automobile chassis in security inspection areas such as temporary security inspections and temporary checkpoints for large-scale events.
Under Vehicle Surveillance Systems (UVSS) Data Sheet
| Usage | Road Traffic Safety |
|
Scanning mode |
linear scanning, ground induction coil trigger |
|
Check the width viewing angle |
< 4 meters |
|
Bottom image longitudinal resolution |
2048 pixels CCD |
|
Water proof |
IP 68 |
|
Scanning device weight |
15.28kg |
|
Material |
Stainess Steel |
|
Power supply |
24VDC |
|
Kind Autofocus Lens |
Kind Autofocus Lens |
| Auxiliary light | 100W |
| Weight capacity | <20T |
| Water-proof grade | IP68 |
| Scanning device volume | 450mm× 400mm× 88mm |
| Communication interface | RS232/RS422 |
| Storage temperature | -40degree to +75degree |
| Operating voltage | 110-240V AC, 50-60Hz |
Under Vehicle Surveillance Systems (UVSS) Features
1. Modular combination design, simple maintenance:
2. The automatic recognition rate of the license plate is 100%, and the black and white list is registered;
3. High-strength pressure and wear resistance, pressure resistance greater than 30 tons;
4. Auxiliary inspection function for suspicious items to improve inspection efficiency;
5. Atomatically generate pictures and comparisons to improve the accuracy of the inspection;
6. single-multiple seal design, military-grade safety protection technology;
7. It has strong adaptability and meets the requirements for checking all types of vehicles in China;
Under Vehicle Surveillance Systems (UVSS) Applications
Our SA3000 undervehicle inspection scanning surveillance system solution is a complete portable system that includes scanning, monitoring and accurately recording data that clearly displays digital video images of the entire vehicle chassis
Government, military, airport and transportation facilities wherever need a complete vehicle monitoring program. The careful integration of components enables the vehicle to move under the surveillance system, which becomes an economical, efficient and convenient solution for inspecting passenger cars, trucks, buses, semi-tractors, trucks, trailers, etc. It is an ideal solution
Under Vehicle Surveillance Systems (UVSS) Showroom
